AV-400 RRFB

Rectangular Rapid Flashing Beacon

Purpose built from the ground up, the AV-400 has raised the bar for RRFBs.

Every aspect of the design from the controller to the mounting brackets incorporate features to minimize installation time and expense.

High efficiency LED modules and an ultra-low power purpose-built controller deliver dependable year-after-year operation.

Performance

High intensity light output exceeds MUTCD requirements by up to five times
Rated operating capacity exceeds 300 activations per day

Solar Engine Design

Compact, low profile design ideal for aesthetically significant streetscapes
Solar engine housing with hinged solar panel mount, battery compartment, controller, and integrated pole mount
Thermally isolated solar panel reduces battery ambient temperature to maximize battery life
Install-ready universal pole mount system
Designed for quick and simple installation; complete system installs on standard sign poles in under 15 mins

Lightbar Design

Three-point pivoting mounting bracket provides superior holding strength
Easily bolts or bands to any pole size
Powder coated black or yellow front panel
Innovative single circuit system for RRFB module and pedestrian confirmation*

Wireless Operation

Push button actuation of one system activates all other systems wirelessly, no configuration required
Field adjustable channel selection for independent operation of multiple crosswalks in proximity

Specifications

1

2

3

4

5

1

2

3

4

Operational

Dual (back-to-back) or single lightbar configuration
MUTCD compliant
WW + S (wig-wag plus simultaneous) flash pattern
Exceeds SAE J595 Class 1 specifications
Automatic night dimming
Meets SAE J578 chromaticity specifications
Field adjustable flash duration, channel, night intensity
Capacity: Exceeds 300, 20 second activations per day

System

20W high efficiency monocrystalline solar panel
45º tilt angle, 360º rotation
12V 14-18Ah battery capacity, AGM sealed lead acid
Ultra low-power controller with integrated processor, Maximum Power Point Tracking (MPPT) charger, wireless module, and field configuration
2.4 GHz wireless mesh network, 10 channel, 1000’ range
Synchronized wireless activation under 150ms
Weight (including mount and batteries): 19.1lbs

Installation

Pre-wired post-top solar engine assembly
Hinged solar panel for easy front access to install batteries
Quick connect battery connections
Simple two wire run; one wire to the lightbars and one wire to the push button
Quick connect wire terminal at lightbar

Activation

Compatible with: Polara BDSP-014 BullDog III, Campbell 4 EVR MOAB, and Polara iNX / iDX Push Button Station

Pole Mount

Universal pole mount for solar engine and lightbar, compatible with 2”, 2 1⁄4”, 2 1⁄2” square telespar, 2 3⁄8” – 4 1⁄2” round pole
Side of pole mount option

Environmental

System operating temperature: -40 to 165° F (-40 to 74° C)
Battery operating temperature: -40 to 140° F (-40 to 60° C)
Compliant to NEMA TS 2, Sections 2.2.7, 2.2.8, and 2.2.9 for temperature/humidity, vibration, and shock

5 year limited warranty. *Patent Pending. Specifications subject to change. Rev 1.2

Resources

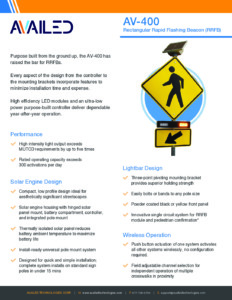

AV-400 Spec Sheet

USA version

AV-400 SPEC SHEET - USA

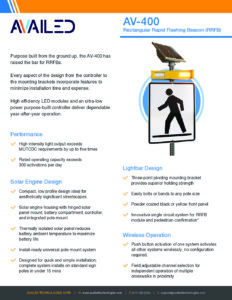

AV-400 Spec Sheet

Canadian version

AV-400 SPEC SHEET - CA

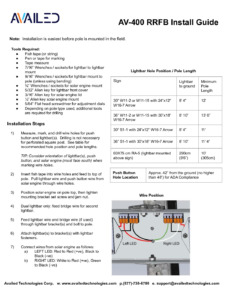

AV-400 Install Guide
